1. Applicable Technical Parameters:
l Tube inner diameter: | 73 – 600mm |
l Required tube ID: | 76mm, 500mm |
l Tube thickness: | 3-20mm |
l Required tube thickness: | 10mm |
l Paper plies: | 30plies ( can be adjusted, depends on paper material and tube thickness) |
l Paper gramme: | 150-600GSM |
l Machinery speed: | 0–15m/min (The speed for 500mm ID paper tube is about 2m/min, but it also depends on paper material and making tube’s size) |
l In-line cutting unit: | Single saw blade |
l In-line cutting length: | 1000–4000 mm |
2. Machinery Consists:
l Paper reeling stand (30 plies) ZT type
l Bottom-ply stand
l Cascade gluing stand (30 plies) PL type
l Spiral winding part (machinery main part)
l Single saw blade in-line cutting unit
3. Machinery Consists Detailed Description:
A. Paper reel stand and Bottom-ply stand
n One set paper reel stand in 90 degree, for 30 plies;
n Slitting rolls are easily placed into reel stand by electric lifting device;
n Easily replace paper reels. When one paper reel is used up, push it into ahead working station and load another new one, do paper reel changing work advance to continue;
n The diameter of paper reel can be 1200mm, reducing much paper waster by ribbons joint;
n Bottom-ply stand is equipped with waxing or oiling frame to reduce the friction between bottom-ply and mandrel;
n Heat booster (on the bottom-ply stand);

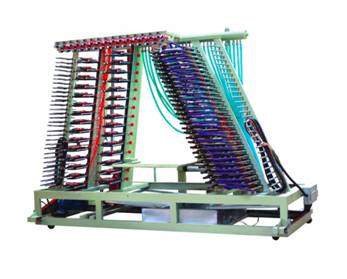

B. Cascade glue stand ( for 30 plies):
n Every ply has web tension controlling device and glue nozzle;
n Single side cascade, including a large glue tank, glue membrane pump with valves;
n Special designed scraper spread glue even and control glue volume conveniently;
C. Spiral winding part:
n Hanging-type operation panel, specialized operation system;
n Separate electric apparatus box;
n Belt tension device (hand-wheel driven);
n Gear shifting is designed to suit to tubes in different specifications;
n 2 Winding drums;
n Driving motor;
D. In-line cutting unit:
n Single saw-blade in-line cutting unit, less dust pollution;
n Infrared sensor to control the cutting length;
n Drive motor for Circular knife cutting;
